Ulyser Aviation: Ultrasonic Receiver for Underwater Locating Device

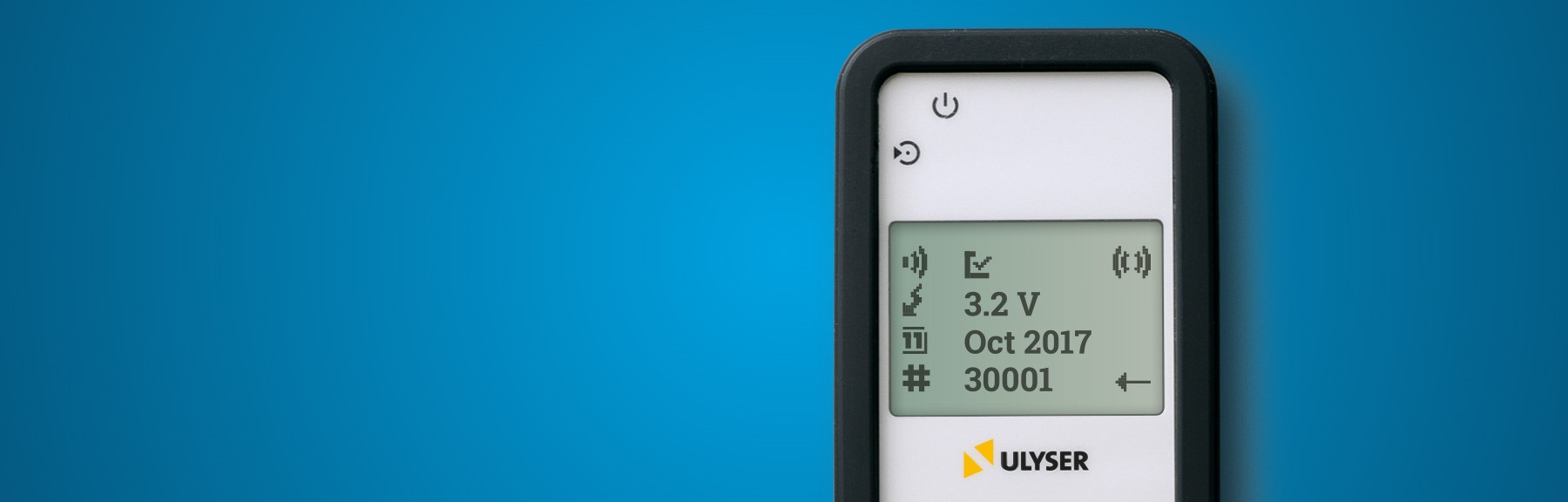

The Ulyser is a battery-powered receiver for acoustic signals with a frequency of 5 to 50 kHz. The Ulyser receives the acoustic signals via an integrated microphone. The received signals are optically displayed via a blinking symbol and acoustically via an integrated loudspeaker.

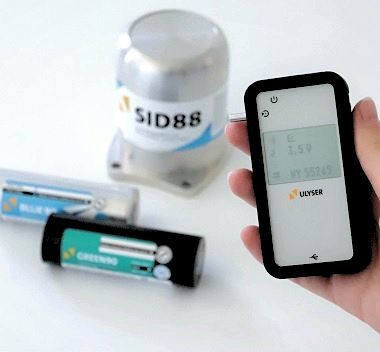

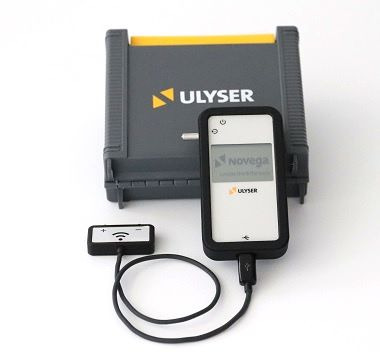

Functional tests of ULD’s/LF-ULD’s can be carried out by means of the Ulyser. The Ulyser measures the battery voltage and reads out data of the ULD/LF-ULD. This data can be analysed with the included software.

Receive Ultrasonic Signals

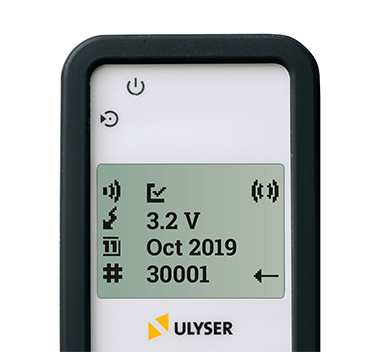

Ulyser Maritime
Ulyser Aviation

Specifications
- Receiver frequency:
5 kHz to 50 kHz
- Power supply:
Battery type CR2032
- Operating voltage: 3 volts
- Operating temperature range: -20°C (-4°F) bis +60°C (140°F)
- Size: 94 x 49 x 16 mm
- Weight: 55 Gramm
